Sweet & Confectionery Ultra Cut Machine
Sweet & Confectionery Ultra Cut Machine

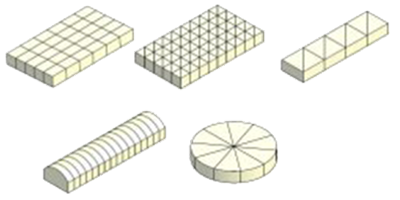

Ultrasonic cutting machines to cut a wide range of products. Cutting of rectangle , triangles and rhombuses out of sheets and Cutting of pieces out of round products.

Technical Features
Compact ultrasonic cutter as table machine

  • Multifuctional ultasonic cutter
  • compact machine design
  • cutting on cutting table
  • Easiest machine control via touch screen
  • Easy and fast cleaning
  • Program controlled knife cleaning with fresh water
  • Optional roll table with fixable castors

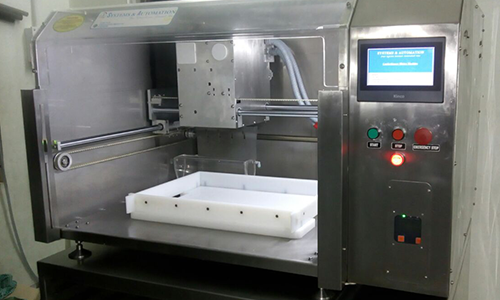

Cutting On Cuttting Plate

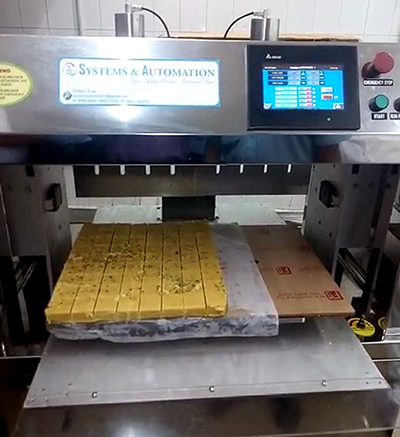

Cutting In Metal Trays (Or) Papper Trays

UCM-01 Ultrasonic Sweet & Confectionery Cutting Machine
( Economy Model)

CAPACITY:
  • Power Supply : Single Phase -240v/50Hz
  • Power Consumption : 1.5kw
  • Machine Size : 1200L*1110W*1500H mm
  • Round Cake Size: Maximum 400 mm Dia
  • Table Size : Squ , Rec ,Triangle and Diamond 600 mm (23.6”) x 400 mm (15.8”)
  • Cutting Speed : Min 30 cut / min, Max 50 cut/ Min
  • Table Speed: Min 3 M/ min , Max 25 M/min
  • Steps of Cutting : Rapid , Cream Cutting and Cake Cutting
Special Features:
  • SWISS Made ULTRASONIC Systems
  • This Machine Equipped with Ultrasonic Titanium Cutting Blade
  • It has Single 300 mm cutting knife
  • This Machine able to cut Over the PU Tray
  • 1.5KW single Phase Power is enough to run the machine ( No need Compressor Air )
  • This machine well controlled with 4 Servo
    • Forward reverse Table Servo Motor
    • Rotary Axis Servo Motor
    • Cutting table UP and Down Axis Servo Motor
  • Precisely can control all the motor speed and Feed.
  • Save inside the parameter
  • No need to train out compressor water daily
  • Mmaintain the lubrication weekly.

UCM-02 Ultrasonic Sweet & Confectionery Cutting Machine
( Medium Productivity Model)

CAPACITY:
  • Power Supply : Single Phase -240v/50Hz
  • Power Consumption : 1.5kw
  • Machine Size : 1400L*1200W*1600H mm
  • Round Cake Size: Maximum 400 mm Dia
  • Table Size : Squ , Rec ,Triangle and Diamond 600 mm (23.6”) x 400 mm (15.8”)
  • Cutting Speed : Min 60cut / min, Max 100 cut/ Min
  • Rapid , Cream Cutting and Cake Cutting
Special Features:
  • SWISS Made ULTRASONIC Systems
  • This Machine Equipped with Ultrasonic Titanium Cutting Blade
  • It has Single 300 mm cutting knife
  • This Machine able to cut Over the PU Tray
  • 1.5KW single Phase Power is enough to run
    the machine ( No need Compressor Air )
  • This machine well controlled with 4 Servo
    • Forward reverse Table Servo Motor
    • Rotary Axis Servo Motor
    • Cutting table UP and Down Axis Servo Motor
  • Precisely can control all the motor speed and Feed,
    and Save inside the parameter
  • Less maintenance ( no need to train out compressor
    water daily, maintain the lubrication weekly)

UCM-03 Ultrasonic Sweet & Confectionery Cutting Machine
( High Productivity Model )

CAPACITY:
  • Power Supply : Single Phase -240v/50Hz
  • Power Consumption : 1.5kw
  • Machine Size : 1400L*1200W*1600H mm
  • Round Cake Size: Maximum 400 mm Dia
  • Table Size : Squ , Rec ,Triangle and Diamond 600 mm (23.6”) x 400 mm (15.8”)
  • Cutting Speed : Min 60cut / min, Max 100 cut/ Min
  • Steps of Cutting :Rapid , Cream Cutting and Cake Cutting
Special Features:
  • SWISS Made ULTRASONIC Systems.
  • This Machine Equipped with Ultrasonic Titanium Cutting Blade
  • It has Double 300 mm cutting knife
  • Self-Cleaning Systems
  • Self-Clamping Systems
  • This Machine able to cut Over the PU Tray,
  • 1.5KW single Phase Power is enough to run the machine ( No need Compressor Air )
  • This machine well controlled with 4 Servo
    • Forward reverse Table Servo Motor
    • Rotary Axis Servo Motor
    • Cutting table UP and Down Axis Servo Motor

USG-01 Ultrasonic Sweet & Confectionery Cutting Machine
( Universal Machine )

CAPACITY:
  • Power Supply : Single Phase -240v/50Hz
  • Power Consumption : 1.5kw
  • Machine Size : 1200L*1110W*1500H mm
  • Round Cake Size: Maximum 400 mm Dia
  • Table Size : Squ , Rec ,Triangle and Diamond 600 mm (23.6”) x 400 mm (15.8”)
  • Cutting Speed : Min 40 cut / min, Max 50 cut/ Min
  • Table Speed : Min 3 M/ min , Max 25 M/min
  • Steps of Cutting : Rapid , Cream Cutting and Cake Cutting
Special Features:
  • SWISS Made ULTRASONIC Systems
  • This Machine Equipped with Ultrasonic Titanium Cutting Blade
  • It has Single 300 mm cutting knife
  • Self-Cleaning Systems
  • This Machine able to cut inside the metal
    and paper trays,(With conditional )
  • 1.5KW single Phase Power is enough to run
    the machine ( No need Compressor Air )
    the machine ( No need Compressor Air )
  • This machine well controlled with 4 Servo
    • Forward reverse Table Servo Motor
    • Rotary Axis Servo Motor
    • Cutting table UP and Down Axis Servo Motor
  • Precisely can control all the motor speed and Feed,
    and Save inside the parameter,
