Cakes Slicing Machines
Cakes Slicing Machines

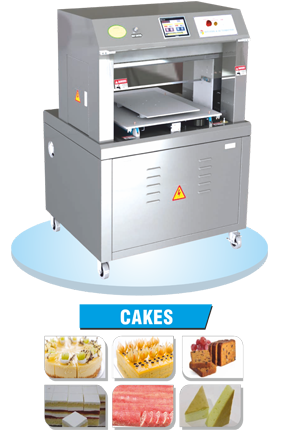

CSM - 01 Cakes Slicing Machine (2 Stepper + 2 Pneumatic Actuators)

CAPACITY:
  • Round Cake: 150-300 (mm)
  • Square & Rectange Cake:600*600(mm)
  • Triangle & Diamond:400*400(mm)
EFFECTIVE CUTTING SPPEED:
  • Plain Cake:30-40 Stroke/ mt
  • Butter Cake:25-35 Stoke/mt.
  • Plum Cake:25-35 Stroke/mt.
  • Fresh Cream Cake:25-35 Stroke/mt.
SPECIFICATION:
  • Machine Size:1150 L * 965 W*1510 H (mm)
  • Power:230 V – Single Phase – 0.5kw
  • Net Weight : 250 kg, Air compressor kgf/ cm2:5
FEATURES:
  • Applicable to mass production or the production of a Small number of diversified products.
  • Touch panel with memory setup
  • Simpilified tray for all kind of products.
  • Precision positioning achieved with stepper and ball screw.
  • Double band blade saws for excellent smooth slicing.
  • Best result with nuts and fruit cakes.
  • Protected with hand safety guards and alarms.

CSM - 02 Cakes Slicing Machine (2 servo + pneumatic Actuators)


CAPACITY:
  • Round Cake & Polycon: 150-400 (mm)
  • Square Cake & Rectangle Cake:600*600(mm)
  • Triangle, Diamond &Half Diamond Cake:400*400(mm)
EFFECTIVE CUTTING SPPEED:
  • Plain Cake:35-45 Stroke/ mt
  • Butter Cake:30-40 Stoke/mt.
  • Plum Cake:30-40 Stroke/mt.
  • Fresh Cream Cake:30-40 Stroke/mt.
SPECIFICATION:
  • Machine Size:1150 L * 965 W * 1510 H (mm)
  • Power:230 V – Single Phase – 0.65kw
  • Net Weight : 250 kg, Air compressor kgf/ cm2:5
FEATURES:
  • Applicable to mass production or the production of a Small number of diversified products.
  • Touch panel with memory setup
  • Simpilified tray for all kind of products.
  • Precision positioning achieved with servo and ball screw.
  • Double band blade saws for excellent smooth slicing.
  • Best result with nuts and fruit cakes.
  • Protected with hand safety guards and alarms.

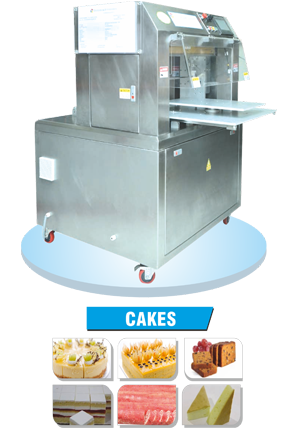

CSM -03 Cakes & Sweets Slicing Machine (4 servo Actuators )

CAPACITY:
  • Round & Polycon Cake: 150-400 (mm)
  • Square & Rectangle Cake:600*400(mm)
  • Triangle ,Diamond & Half Diamond Cake:400*400(mm)
EFFECTIVE CUTTING SPPEED:
  • Plain Cake:10 - 60 Stroke/ mt
  • Butter Cake:10-50 Stoke/mt.
  • Plum Cake:10-45 Stroke/mt.
  • Fresh Cream Cake:10-45 Stroke/mt.
SPECIFICATION:
  • Machine Size:1225 L * 965 W*1550 H (mm)
  • Power:230 V – Single Phase – 1.2kw
  • Net Weight : 250 kg
FEATURES:
  • Applicable to mass production or the production of a Small number of diversified products.
  • Touch panel with memory setup
  • Simpilified tray for all kind of products.
  • Precision positioning achieved with servo and ball screw.
  • Double band blade saws for excellent smooth slicing.
  • Best result with nuts and fruit cakes.
  • Protected with hand safety guards and alarms.
+
